TH8 / TM8 Chipper - Spare Parts

TH8 / TM8 Chipper - Spare Parts

Description

This product is now discontinued and no longer for sale.

Available Parts List

You can use the exploded parts image to cross reference with the part you require.

MAIN BODY & FEED ASSEMBLY
Part no. Name Style/Spec Quantity
1support leg4
15flat washer C128
16nonmetal inserts hexagon lock nutM124
17hexagon boltM12X604
9feed roller control handle1
10chain1
15flat washer C128
16nonmetal inserts hexagon lock nutM124
18flat washer C104
22nonmetal inserts hexagon lock nutM102
25hexagon boltM12X354
27hexagon boltM10X302
8Hydraulic control valve1
18flat washer C104
21hexagon nutM102
22nonmetal inserts hexagon lock nutM102
24hexagon boltM10X402
11feed hopper outrigger adjusting plate1
12feed hopper outrigger1
18flat washer C104
22nonmetal inserts hexagon lock nutM102
23hexagon boltM10X252
26lifting boltM8X161
2feed hopper connection plate4
3feed hopper upper plate1
4feed hopper lower plate1
5feed hopper left-side plate1
6flow control valve base plate1
7feed hopper right-side plate1
18flat washer C1040
19Spring washer104
20hexagon boltM10X164
22nonmetal inserts hexagon lock nutM1018
23hexagon boltM10X2518
28flat washer C84
29flat washer C64
30nonmetal inserts hexagon lock nutM62
31nonmetal inserts hexagon lock nutM82
32hexagon boltM8X602
33hexagon boltM6X702
HYDRAULIC SYSTEM
No. Name Style/Spec Quantity
1O style ringD24X2.42
2pump glibM18X1.52
3straight jointM18X1.5 9/16-18UNF3
4straight jointG1/2 9/16-18UNF2
5long straight jointG1/2 9/16-18UNF1
6T-junction9/16-18UNF1
7seal washern224
8seal washern188
9long straight jointM18X1.5 9/16-18UNF1
10oil pipe unionM18X1.52
11straight jointM22X1.5 9/16-18UNF4
12standard spring washer87
13Hexagon socket cap screwM8X208
14Oil-in pipe 11
15Oil-in pipe 21
16Oil-in pipe 31
17Oil-return 11
18Oil-return 21
19Oil-in pipe 41
20Oil-return 31
21Oil-in pipe 51
22Oil tank1
23oil-in glib1
24hydraulic motorBMP-160-2AMH2
25flow control valve1
26Valve1
27Gear pumpCBN-F306-FL1
28O style ringD14X2.41

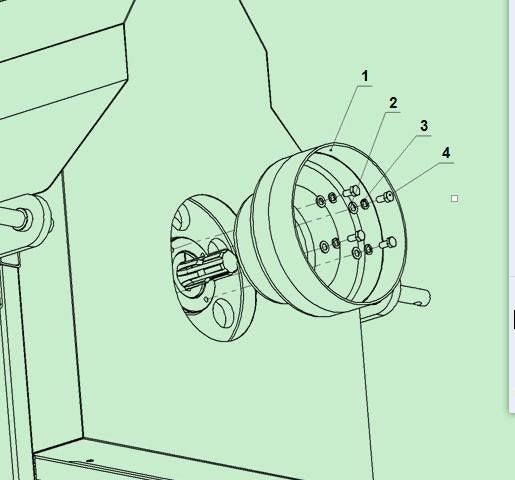

PTO COMPONENTS
Part no. Name Style/Spec Quantity
1PTO shaft cover1
2Flat washer C84
3Standard spring washer84
4Hexagon boltM8X164
