Old Model EFGC Mower (Parts)
We provide a large range of spares to fit our variety of products. Most general parts can be purchased online, for any additional parts please call the office with the part number. Parts will be sent out within 1-2 working days, unless on backorder. All spares are sent tracked through TNT.
All our spares will be sent in recycled cardboard boxes, as we are trying to do our bit for the environment!
- Description
- MANUAL
- Parts List
Description
This product is now discontinued and no longer for sale.

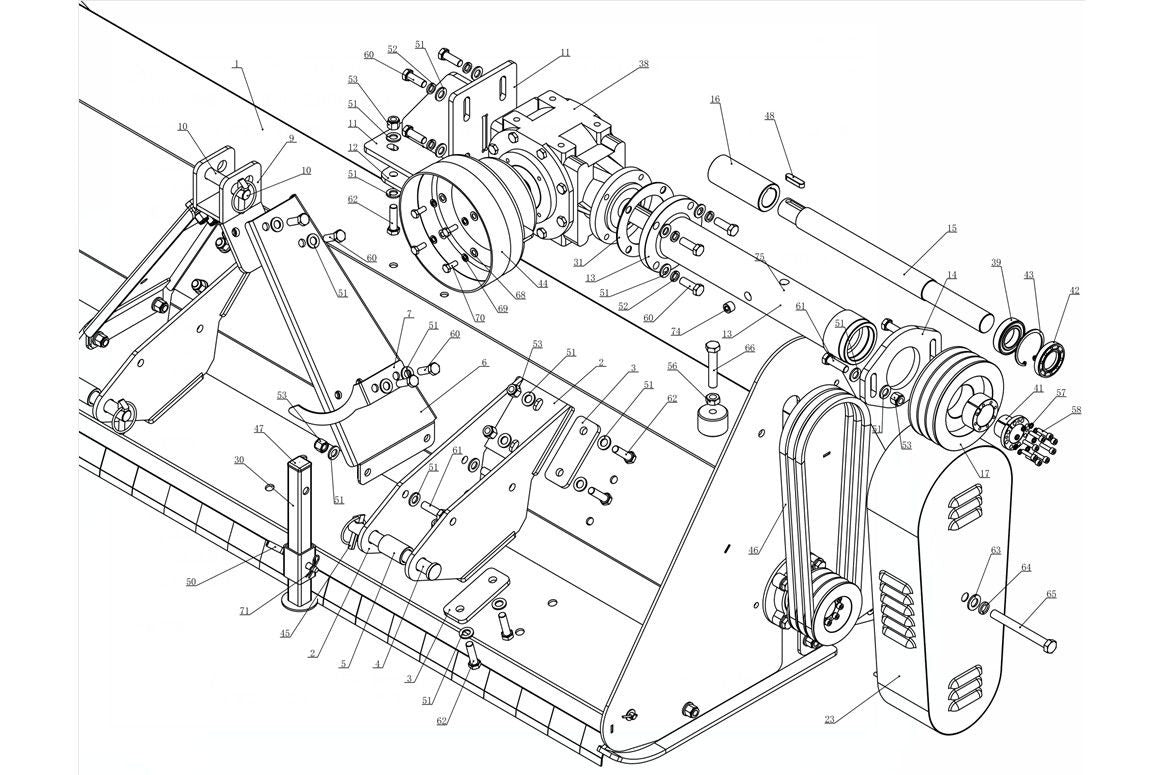

No. | Part No. | Name & Specification | Qty | |
1 | EF175-124 | Upper hang pin | 1 | |
| 2 | EF175-014 | Arm weldment | 1 | |
3 | SP11 | Lock pin assembly | 3 | |
| 4 | EF175-021 | left connect arm weldment | 1 | |
5 | EF175-121 | PTO board | 1 | |
| 6 | EF175-022 | right connect arm weldment | 1 | |
7 | NN12 | Fixting nut | 24 | |
| 8 | PW12 | washer | 36 | |
9 | HB12A40 | bolt M12*40 | 20 | |
| 10 | EF175-017 | hang connecting board weldment | 2 | |
11 | EF175-109 | scaleboard | 4 | |
| 12 | PW12 | washer | 8 | |
13 | EF175-120 | pipe shroud | 2 | |
| 14 | EF175-125 | down hang pin | 2 | |
15 | EF175-126 | pipe plug | 1 | |
| 16 | EF175-019 | armbrace weldment | 1 | |
17 | RP4 | R pin | 1 | |
| 18 | EF175-018 | left dump rail weldment | 1 | |
19 | EF175-122 | armbrace pin | 1 | |
20 | HB12A30 | bolt M12*30 | 14 | |
21 | SW12 | sping washer12 | 17 | |
| 22 | UC207-Z | Bearing set UC207 | 2 | |
23 | EF175-013 | blade shaft weldment | 1 | |
| 24 | NN16 | fixting nut M16 | 28 | |
25 | EF175-127 | Y blade | 56 | |
| 26 | EF175-102 | separation sleeve | 56 | |
27 | HB16A80 | Bolt M12*80 | 28 | |
| 28 | OS55A80A8 | oil seal FB55*80*8 | 1 | |
29 | EF175-103 | Bush | 1 | |
| 30 | EF175-130 | small belt wheel | 1 | |
31 | PL35A60 | expension bush | 2 | |
| 32 | GF8A1 | Oil nipple M8x1 | 2 | |
33 | EF175-132 | Plate | 3 | |
| 34 | EF175-133 | Plate | 20 | |
35 | EF175-109 | Plate | 1 | |
| 36 | PW10 | washer | 32 | |
37 | EF175-106 | plate shaft | 1 | |
| 38 | SP4A35 | split pin | 2 | |
39 | EF175-018 | right dump rail weldment | 1 | |
| 40 | GB5783-86 | Bolt M12*35 | 8 | |
41 | GB5786-86 | Bolt M12*10 | 1 | |
42 | EF175-022 | belt wheel cover | 1 |
| 43 | VBB1016 | belt | 3 |
44 | HN16A1.5 | Nut M16*1.5 | 1 |
| 45 | HB16A1.5A45 | Bolt M16×1.5×45 | 1 |
46 | EF175-101 | connecting board | 1 |
| 47 | BPW12 | big washer12 | 2 |
48 | HSSTR3/8 | hexagonal socket head plug | 2 |
| 49 | EF175-134 | flange paper cushion | 1 |
50 | EF175-011 | Fram weldment | 1 |
| 51 | EF175-104 | Connecting shaft | 1 |
52 | KA10A40 | Key A10X40 | 1 |
53 | KA10A70 | Key A10*70 | 1 |
| 54 | EF175-131 | PTO cover | 1 |
55 | BPW10 | big washer10 | 2 |
| 56 | SW10 | sping washer10 | 2 |
57 | HB10A12 | bolt M10*12 | 2 |
| 58 | EF175-123 | Gearbox fixting board | 1 |
59 | EF175-020 | Gearbox fixting board weldment | 1 |
| 60 | EF175-108 | roller right connecting board | 1 |
61 | UC205-Z | UC205 bearing seat | 2 |
| 62 | XH50.003Z.02W | Gear box assembly | 1 |
63 | EF175-105 | spindle collar | 1 |
| 64 | EF175-012 | roller weldment | 1 |
65 | HSHS12A35 | hexagonal socket head boltM12*35 | 4 |
| 66 | EF175-015 | shaft pipe liner weldment | 1 |
67 | B6007 | deep groove ball bearing6007 | 1 |
| 68 | CFH62 | Hole sping | 1 |
69 | EFH175.130 | oil seal 35*62*10 | 1 |
| 70 | EF175-129 | big belt wheel | 1 |
71 | EF175-107 | roller left connecting board | 1 |
| 72 | HHSS8A20 | sunk screw M8X20 | 10 |
73 | NN8 | fixing bolt M8 | 2 |
| 74 | EF175-016 | scraping board weldment | 1 |
