Medium Pro Verge Mower - Spare Parts

Medium Pro Verge Mower - Spare Parts

Description

Versatile. Reliable. Built for Performance.

The Medium Pro Verge Mower is designed to make land maintenance simple and efficient. Whether you are working on verges, ditches, fields, or hedges, this mower delivers consistent results with minimal effort.


Outstanding Versatility

First and foremost, this mower is built to adapt.
It features a 90-degree upward tilt and a 55-degree downward tilt, allowing you to handle a wide range of cutting tasks.

In addition, it can cut directly behind the tractor. As a result, it is ideal for topping paddocks and open fields.


Strong and Reliable Design

Equally important, the Medium Pro Verge Mower is engineered for durability.
It fits tractors with CAT 1 hitches and includes a robust, up-rated gearbox for added strength.

Moreover, the gearbox comes pre-filled with oil, so it is ready to work straight away.
At the same time, hardened forged hammers provide a tough cutting edge, ensuring cleaner and more efficient cuts across all terrain types.


Lightweight Without Compromise

Despite its strength, this mower remains lightweight.
Therefore, it is perfectly suited to smaller tractors.

Although it is a lighter alternative to the AGF series, it does not sacrifice power. Instead, it delivers reliable performance for demanding jobs.


Multiple Cutting Width Options

To suit different needs, the mower is available in 1.25m, 1.45m, and 1.65m cutting widths.
Consequently, it works well across a wide range of applications.

Whether you are clearing verges, topping fields, or trimming hedges, this machine gets the job done efficiently.


A Dependable Choice for Land Maintenance

In conclusion, the Medium Pro Verge Mower combines versatility, durability, and performance in one dependable machine.

If you need a mower that works hard and delivers every time, this is a solution you can rely on.



Available Parts List

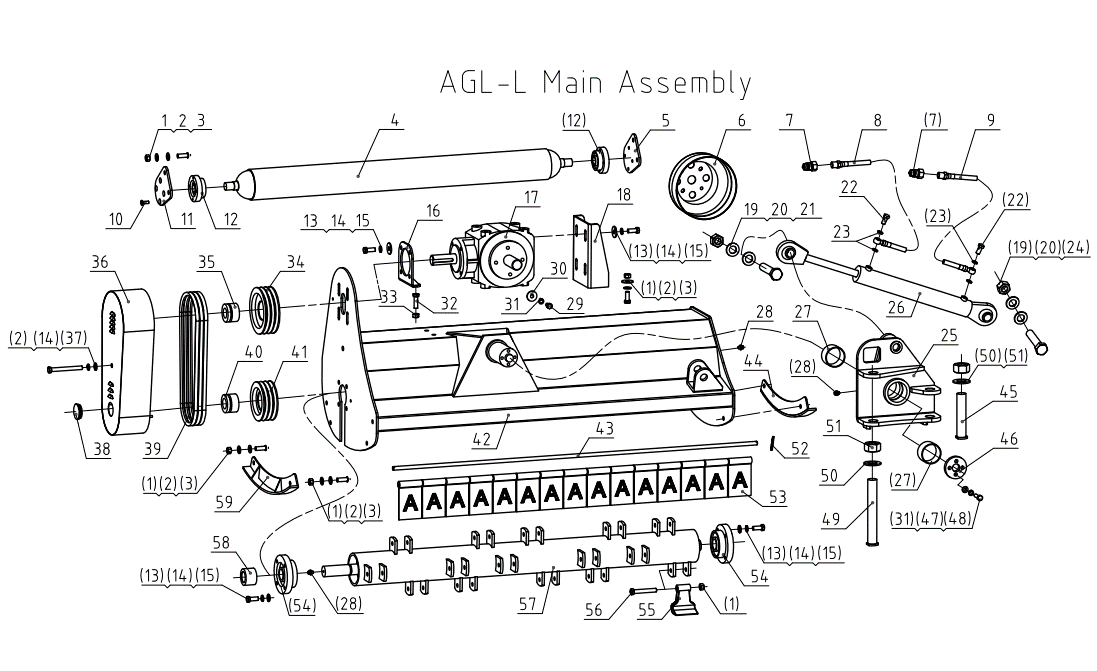

You can use the exploded parts image to cross reference with the part you require.

MAIN MOWER BODY & GEARBOX ASSEMBLY
Num Part Quantity
1Lock nut8
2Washer 1223
3hexagon bolt M12*358
4Roller weldment1
5Roller plate (Right)1
6PTO guard1
7Quick-change connector2
8Hydraulic hose 37001
9Hydraulic hose 33501
10Hex head screwsM8*258
11Roller plate (Left)1
12Bearing seat UC205-Z2
13Hexagon bolt M12*3016
14Spring washer 1217
15Washer 1210
16Gearbox adjustment plate1
17Gearbox1
18Gearbox seat weldment1
19Lock nut M242
20Washer 244
21hexagon bolt M24*1201
22Hollow bolt M12*1.252
23Bonded washer 124
24Hexagon bolt M24*1101
25Flip frame welded pieces1
26turn over cylinder1
27Bearing 63*68*402
28Slip M83
29hexagon bolt M10*204
30Washer 124
31Spring washer 108
32hexagon bolt M12*401
33Nut M121
34Big pulley1
35Tension 33*601
36Belt cover1
37Hexagon bolt M12*1301
38Rubber cover1
39Belts 17X991 B393
40Tension 35*601
41Small pulley1
42Body weldment1
43Shaft guard1
44Skilled plate(right)1
45Swing pin (short)1
46Lock plate1
47hexagon bolt M10*404
48Washer 104
49Swing pin (long)1
50Washer 302
51Lock nut M302
52Cotter pin2
53Back covern
54Bearing UC207-Z2
55HammerN
56hexagon bolt M12*80N
57Blade shaft1
58Bush1
59Skilled plate(Left)1

LINKAGE & SWING ARM ASSEMBLY
Num Part Quantity
1Upper pin1
2pin assembly3
3linkage weldment1
4hook1
5Lock nut M302
6Bearing 30*34*404
7Quick-change connector2
8Hydraulic hose 20001
9Hydraulic hose 24001
10hexagon bolt M24*651
11Washer 242
12Lock nut M241
13Washer 302
14Spring washer 222
15Nut M222
16Swing arm pin2
17Swing cylinder1
18Rotating arm weldment1
19Bearing 30*34*254
20Bonded washer4
21Hollow bolt M12*1.252
22Plug2
23R pin2
24Pin2
25Lower Pin2
26Support weldment2
27Rotating arm1

Product Specification

  AGL125 AGL145 AG165
CUTTING WIDTH 1.25 1.45 1.65
FLAILS 20 24 28
BELTS 3 3 3

Regular price £1.00 GBP
Sale price £1.00 GBP Regular price
Tax included.

Important Ordering Information

Please note:we do not take orders on the website for Europe, The Channel Islands, Isle of Man or Ireland. If you wish to place an order to one of these locations, please give us a call on+44 (0)1228 712121to discuss shipping options
