Executioner - Spare Parts

Executioner - Spare Parts

Description

A Powerful flail mulcher capable of pulverising 40mm thick material, such as wood, gorse, seeves and any other overgrown vegetation. This truly is a heavy duty machine. Made out of thick grade steel, utilising hydraulic offset complete with heavy forged hammers make this machine suitable for the toughest of tasks while being built to last. Available in 2.6m cut, 2.8m cut and 3.0m cuts. These machines can be used to cut fields or clear woodland floor!

Available Parts List

You can use the exploded parts image to cross reference with the part you require.

MAIN FLAIL MOWER ASSEMBLY
Part Number Part Description Qty
1 Connecting Plate 1
2 Suspension Frame 1
3 Pedestal 1
4 Spring Washer 2
5 Roller Hanging Board 2
6 Full Screw Bolt 2
7 Metal Locking Nut 44
8 Tensioning Wheel 1
9 Full Screw Bolt 1
10 Flat Gasket 18
11 Thin Nut 2
12 Adjusting Plate 1
13 Full Screw Bolt 6
14 Small Belt Pulley 1
15 Lock Cap 2
16 Flat Gasket 3
17 Metal Lock Nut 3
18 Belt 5
19 Big Belt Pulley 1
20 Belt Pulley Board 1
21 Full Screw Bolt 8
22 Spring Washer 8
23 Flat Gasket 8
24 Metal Lock Nut 4
25 Extra Large Flat Gasket 2
26 Right Bearing Pedestal 1
27 Check Ring 4
28 FB Oil Seal 2
29 Upper Suspension Pin 1
30 Below Suspension Pin 3
31 Lock Pin Assembly 3
32 Self-Lubricating Bearing 4
33 Flat Gasket 20
34 Blade Shaft 1
35 1 Board 28
36 Half Thread Bolt 34
37 Hammer 34
38 Guide Rail Shaft 2
39 Check Ring 1
40 Self Aligning Roller Bearing 2
41 Board 1
42 Oil Cup 3
43 Roller Bearing Pedestal 2
44 Self Aligning Roller Bearing 2
45 Check Ring 2
46 FB Oil Seal 2
47 Roller (300) 1
48 Full Screw Bolt 1
49 Spring Washer 16
50 Full Screw Bolt 16
51 Thin Nut 2
52 Full Screw Bolt 12
53 Board 4
54 Spring Washer 4
55 Extra Large Flat Gasket 4
56 Gear Box Adjustment Pedestal 1
57 PTO Cover 2
58 Oil Seal 1
59 Transmission Box 1
60 Board 1
61 Cover Plate 1
62 Duplex Pipe Clamp 1
63 Full Screw Bolt 1
64 Flat Gasket 20
65 Full Screw Bolt 6
63 Roller Hanging Board 1
67 Pulley Cover 1
68 Full Screw Bolt 10
69 Metal Lock Thin Nut 10
70 Board 1
71 Shifting Cylinder 1
72 Pipeline 2
73 Guide Rail Shaft Cover Plate 4
74 Left Pedestal 1
75 Main Body 1
76 Spring Washer 4
77 Right Pedestal 1
78 Flat Gasket 10
79 Metal Lock Thin Nut 9
80 Hanging Hook 1
81 Hanging Rod Book 1
82 Full Screw Bolt 1
83 Extra Large Flat Gasket 1
84 Full Screw Bolt 1
85 Board Hanging Rod 1
86 Full Screw Bolt 4
87 Spring Washer 4
88 (Φ28)Rubber Cover 1
89 Lubricating Pipe 1
90 Left Bearing Pedestal 1
91 Full Screw Bolt 8

GEARBOX 1000RPM ASSEMBLY
Part Number Part Description Qty
1 Gearbox 1000RPM 1
2 Check Ring 1
3 Hexagon Socket Cap Screw 4
4 Paper Pad 1
5 Axle Tube 1
6 Air Plug 1
7 Hexagon Socket Tapered Plug 1
8 Deep Groove Ball Bearing 1
9 Check Ring 1
10 Oil Seal 1
11 Transmission Shaft 1
12 Flat Key 1
13 Adapter Sleeve 1
14 Flat Key 1
GEARBOX INTERNAL COMPONENTS
Part Number Part Description Qty
1 M10X25 Screw Bolt 8
2 10 Spring Washer 8
3 Hexagon Socket Tapered Plug 2
4 Shell Cover 1
5 90X10 Blanking Cap 1
6 Shell 1
7 Air Plug 2
8 Spacer Bush 1
9 Deep Groove Ball Bearing 1
10 Adjusting Pad 1
11 90 Check Ring 1
12 FB Oil Seal 2
13 Output Shaft 1
14 Adjusting Pad 1
15 Tapered Roller Bearing 1
16 FB Oil Seal 1
17 Check Ring 1
18 Adjusting Pad 1
19 Tapered Roller Bearing 1
20 42 Check Ring 2
21 Main Gear 2
22 Key 4
23 Spring 4
24 Input Shaft 1
25 Spacer Bush 1
26 Deep Groove Ball Bearing 1

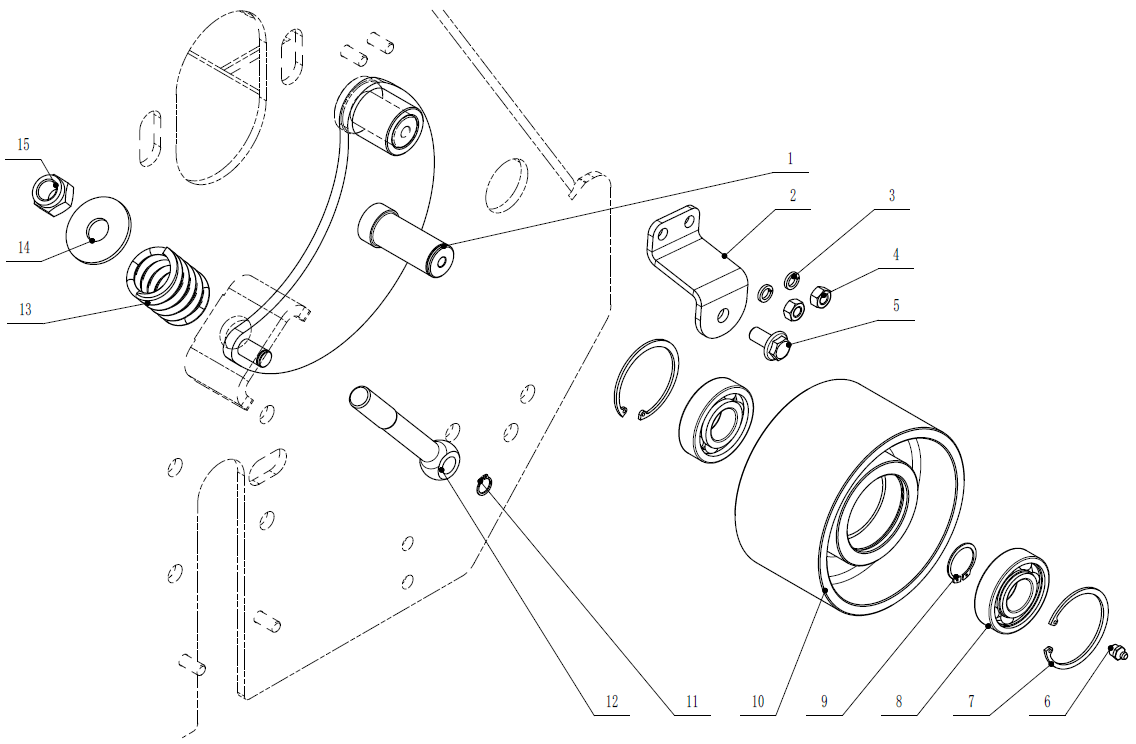

TENSIONING WHEEL ASSEMBLY
Part Number Part Description Qty
1 Tensioning Wheel Assembling Seat 1
2 Press Plate 1
3 Washer 2
4 M10 Nut 2
5 M12x25 Bolt 1
6 Oil Cup 1
7 Check Ring 2
8 Bearing 2
9 Check Ring 1
10 Tensioning Wheel 1
11 Check Ring 1
12 M20x150 Bolt 1
13 Pressure Spring 1
14 Washer 1
15 M20 Nut 1
