37 Ton Megga Splitter Pro Log Lift - Spare Parts

37 Ton Megga Splitter Pro Log Lift - Spare Parts

Description

MDL Mega Splitter – 37 Ton Powerhouse

The MDL Mega Splitter 37 Ton delivers serious splitting force, built to handle even the toughest, knotty logs with ease. Equipped with both 2-way and 4-way splitting heads, this machine gives you the flexibility to work efficiently across a wide range of log sizes.

Safety is front and center, with a two-handled control lever that ensures controlled, secure operation. An oversized hydraulic ram provides exceptional splitting power, making short work of large and stubborn timber.

For added convenience, the splitter includes an end table to catch split logs and a hydraulic log lift, allowing heavy logs to be raised effortlessly—no back strain, no wasted energy.

Each machine is shipped fully assembled and pre-filled with oil. Simply add fuel and bolt on the tow hitch (4 bolts). The hitch is removed for transport to keep the pallet length down, helping to reduce shipping costs.

Built tough, easy to use, and designed to save your back—this splitter means business.

Available Parts List

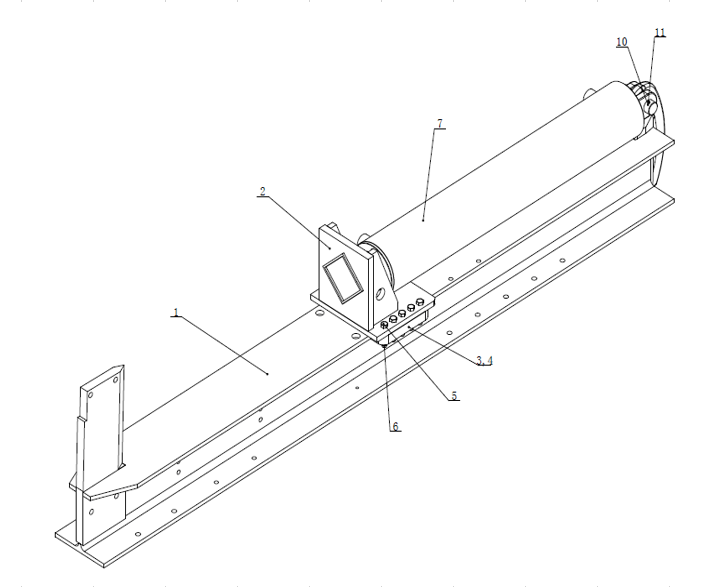

You can use the exploded parts image to cross reference with the part you require.

Serial No. N&M Type Quantity
1 Main Beam 1
2 Log Stripper Assembly 1
3 Frame Slide Bottom Plate 2
4 Grease fitting M8X1 2
5 Bolt 7/16-14X57 10
6 Self-locking Nuts 7/16-14 10
7 Cylinder 1
10 Cylinder pin 1
11 Cotter pin 4X50 2
Serial No. N&M Type Quantity
1 Tongue Assembly 1
2 Tow Hitch 2" 1
3 Bolt M12X75 2
4 Self-locking Nuts M12 M12 2
5 Tongue strenthen tube 2
6 D Pin 1
Serial No. N&M Type Quantity
1 Hydraulic tank 1
2 Oil scale 1
3 Hose Nipple 1"NPT(M) 1
4 Crossover Coupling 1
5 Inlet filter 1
6 Nut 1"-14 2
7 Plug screw 1/2"NPT 1
Serial No. N&M Type Quantity
1 Engine 1
2 Pump 22GPM 22GPM 1
3 Square bent 3/4"NPT-1 1/16"-12UNF 1
4 Bolt M10X25 2
5 Pump housing 1
6 Bolt M8X25 4
7 Bolt M5X10 4
8 Engine Coupling Hub 1
9 Pump Coupling Hub 1
10 Elastomer 1
11 Bolt M8X10 4
12 Hose connector 1"NPT(M) 1
13 Coupler housing cover 1
Serial No. N&M Type Quantity
1 Valve Platform 1
2 Valve 1
3 Square bent 3/4"NPT-1 1/16"-12UNF 4
4 Bolt M8X45 3
5 Self-locking Nuts M8 M8 3
Serial NO. N&M Type Quantity
1 Bolt M10X40 4
2 Nut M10 4
3 Bolt M12X40 8
4 Self-locking Nuts M12 8
5 Bolt M10X75 1
6 Self-locking Nuts M10 9
7 Bolt M8X20 4
8 Bolt M10X40 4
9 Bolt M10X30 4
10 C type flat washer 10 4
11 Self-locking Nuts M8 4
12 Dust cap 2
13 26 Big flat washer 26X45X3 2
14 Cotter pin 4X50 2
15 Square bent 3/4"NPT-1 1/16"-12UNF 3
16 Hydraulic fitting 1 1∕4"NPT 1
17 Crossover Coupling 1 1/4"NPT(M)-3/4"NPT(F) 1
18 Chain 2
19 Bolt M10X80 1
20 C type flat washer 10 2
21 Self-locking Nuts M10 1
Serial No. N&M Type Quantity
1 wood crate 1
2 Beam assembly 1
3 Tongue Assembly 1
4 Tank assembly 1
5 Engine assembly 1
6 Valve assembly 1
7 Wheel 4.80-12 2
8 4 way slip on blade 1
9 Y support leg 1
10 Fender 2
11 Log cradle 2
13 Hose Input 1 1/4"X24" 1
14 Hose clamp 42 1
15 Hose-Return from valve to Tank 1 1/16"-12UNF-1 1/16"-12UNFX1000 1
16 Hose-Input from pump to valve 1 1/16"-12UNF-1 1/16"-12UNFX1000 1
17 Hose-Input from valve to cylinder 1 1/16"-12UNF-1 1/16"-12UNFX600 1
18 Hose-Input from valvecylinder to valve 1 1/16"-12UNF-1 1/16"-12UNFX700 1
Serial No. N&M Type Quantity
1 Log Catcher Tray 1
2 upper log lift rack 1
3 under log lift rack 1
4 Drawout Pin 4
5 B pin φ2.5X45 4
6 Mechanical back-up arm 1
7  Cylinder base 1
8 Log Lift Cylinder 1
9 Hydraulic Fitting 3∕8NPT-3∕4-16UNF 1
10 Hydraulic Fitting 3∕8"NPT-3∕4"-16UNF 1
11 Pin roll 1
12 Pin roll 1
13 Pin roll 1
14 8 Pin 6
15 Valve 1
16 Hydraulic fitting 3/4"NPT-3/4"-16UNF 2
17 Hydraulic fitting 3/4"NPT 1
18 Hose input 3/4"-16UNF-3/4"-16UNF X 78" 2
19 Bolt M10X50 4
20 Self-locking Nuts M10 4
21 Bolt M8X45 3
22 Self-locking Nuts M8 3
24 Pip Clamp 1
25 Bolt M6X25 1
26 Self-locking Nuts M6 1

Regular price £16.00 GBP
Sale price £16.00 GBP Regular price
Tax included.

Hurry up! Offer ends in
00 Days
00 Hours
00 Minutes
00 Seconds

Important Ordering Information

Please note:we do not take orders on the website for Europe, The Channel Islands, Isle of Man or Ireland. If you wish to place an order to one of these locations, please give us a call on+44 (0)1228 712121to discuss shipping options

Full 37 Ton Megga Splitter Pro Log Lift - Spare Parts details.

MDL Mega Splitter – 37 Ton Powerhouse

The MDL Mega Splitter 37 Ton delivers serious splitting force, built to handle even the toughest, knotty logs with ease. Equipped with both 2-way and 4-way splitting heads, this machine gives you the flexibility to work efficiently across a wide range of log sizes.

Safety is front and center, with a two-handled control lever that ensures controlled, secure operation. An oversized hydraulic ram provides exceptional splitting power, making short work of large and stubborn timber.

For added convenience, the splitter includes an end table to catch split logs and a hydraulic log lift, allowing heavy logs to be raised effortlessly—no back strain, no wasted energy.

Each machine is shipped fully assembled and pre-filled with oil. Simply add fuel and bolt on the tow hitch (4 bolts). The hitch is removed for transport to keep the pallet length down, helping to reduce shipping costs.

Built tough, easy to use, and designed to save your back—this splitter means business.
