37 Ton Megga Splitter - Spare Parts

37 Ton Megga Splitter - Spare Parts

Description

The MDL Mega splitter 37 Ton packs a massive splitting punch. Easy to convert from horizontal or vertical position, off-road towable, with a 15hp Petrol mounted engine. Two handled controls for safe operation. The 37 Ton splitter uses a large diameter ram to provide huge force to split larger, harder, logs. It’s virtually unstoppable! Perfect for splitting logs for a living or just a affordable option for your own log fires. This machine is off-road towable, making it easy to transport from A to B.

Available Parts List

You can use the exploded parts image to cross reference with the part you require.

Serial No. N&M Type Quantity
1 Main Beam 1
2 Cylinder 5 inch 1
3 Cylinder pin 1
4 Retract wedge 1
5 Bolt M12X40 4
6 Nut M12 4
7 Vertical Blade 1
8 Right Horizontal Blade 1
9 Left Horizontal Blade 1
10 Frame Slide Bottom Plate 2
11 Bolt 7/16-14X2" 10
12 Self-locking Nuts 7/16-14 11
13 Bolt M12X40 M12X40 4
14 Nut M12 M12 4
15 Bolt 7/16-14x2.25" 1
16 Grease fitting M8X1 2
17 Cotter pin 4X50 2
Serial No. N&M Type Quantity
1 Tongue Assembly 1
2 Tow Hitch 2" 1
3 Bolt M12X75 2
4 Tongue strenthen tube 2
5 Self-locking Nuts M12 M12 2
6 Pin 1
7 Pin spring 1
8 Eyebolt M10 M10 1
9 Flat washer 34x11x2.5 1
10 Flat washer 40x23x2 1
11 B snap ring 1
12 Tongue set pin 1
13 Cotter pin 4X50 1
14 D pin 2
Serial No. N&M Type Quantity
1 Hydraulic tank 1
2 Bolt M12X80 2
3 Self-locking Nuts M12 2
4 Oil scale 1
5 Hose Nipple 3/4"NPT 1
6 Crossover Coupling 1
7 Inlet filter 1
8 Plug screw 1/2"NPT 1
9 Nut 1"-14 2
Serial No. N&M Type Quantity
1 Engine Lifan 13HP 1
2 Pump 16GPM 1
3 Engine Coupling Hub 1
4 Elastomer 1
5 Pump Coupling Hub 1
6 Bolt 4
7 Pump housing 1
8 Coupler housing cover 1
9 Bolt M5X10 4
10 Bolt M8X25 4
11 Coupler housing pad 1
12 Bolt M8X20 4
Serial No. N&M Type Quantity
1 Hydraulic Fitting #1 - Cylinder to Valve 1
2 Hydraulic Fitting #2 - Bottom of Valve/Top of Pump - 90 degree 3
3 Hydraulic Fitting #3- Side of Valve - 90 degree 1
4 Hydraulic Fitting #4 - Top of Cylinder - 90 degree 1
5 Rear support leg 1
6 Front support leg 1
7 Carton 1

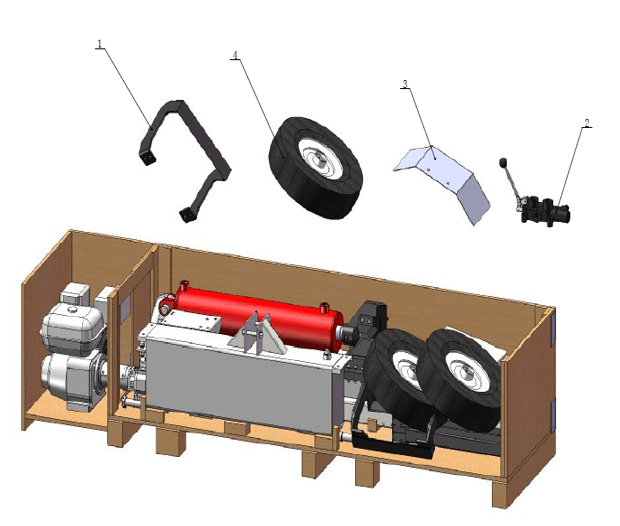

Serial NO. N&M Type Quantity
1 Log cradle 2
2 Valve 1
3 Fender 2
4 Wheel 2
5 Hose #3 - Output from Valve to Piston 1
6 Hose #2 - Input from Pump to Valve 1
7 Hose #4- Return from Valve to Tank 1
8 Hose #1 - From Tank to Pump 1" 1
9 Hose clamp 35 2

Regular price £16.00 GBP
Sale price £16.00 GBP Regular price
Tax included.

Hurry up! Offer ends in
00 Days
00 Hours
00 Minutes
00 Seconds

Important Ordering Information

Please note:we do not take orders on the website for Europe, The Channel Islands, Isle of Man or Ireland. If you wish to place an order to one of these locations, please give us a call on+44 (0)1228 712121to discuss shipping options

Full 37 Ton Megga Splitter - Spare Parts details.

The MDL Mega splitter 37 Ton packs a massive splitting punch. Easy to convert from horizontal or vertical position, off-road towable, with a 15hp Petrol mounted engine. Two handled controls for safe operation. The 37 Ton splitter uses a large diameter ram to provide huge force to split larger, harder, logs. It’s virtually unstoppable! Perfect for splitting logs for a living or just a affordable option for your own log fires. This machine is off-road towable, making it easy to transport from A to B.
